What Is Utility Daylighting?
Utility daylighting means exposing a buried service so you can see it. A crew uses a pressure wand to loosen the soil around the locate mark, and the vacuum lifts it out until the pipe, cable or duct bank is visible. Then we measure. Depth to top, outside diameter, material, condition and offset from a fixed reference all go onto a log sheet with photos.
Locate paint from Ontario One Call shows horizontal position within a tolerance zone. It does not show depth, and in older parts of Toronto it can be off by more than you would like. Daylighting closes that gap. It is the field step that produces Subsurface Utility Engineering (SUE) Quality Level A data, the only level where the utility is physically seen.
If you also need the hole opened up for a crossing, tie-in or footing, the same crew switches to hydrovac excavation. For a narrow trench along the corridor afterward, we run slot trenching.
What we record at every exposure

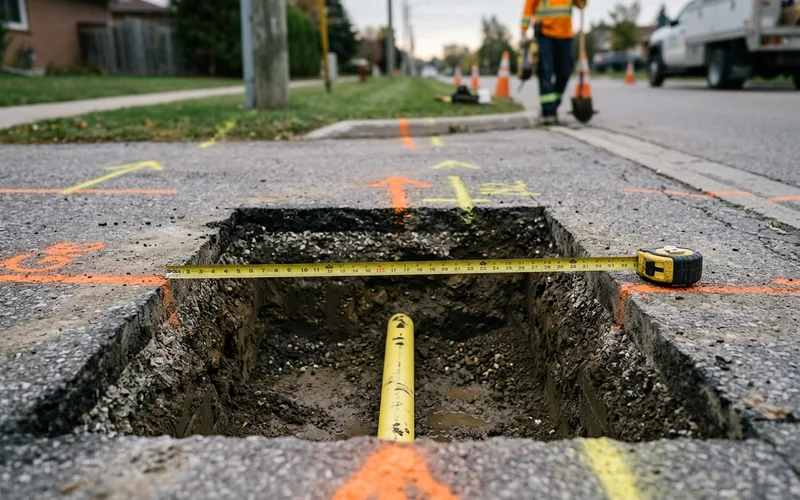

- Depth to top of utility, measured from finished grade
- Outside diameter and material (steel, PE, cast iron, concrete-encased duct, HDPE conduit)
- Horizontal offset from a fixed point or survey control
- Coating or jacket condition, with photos from two angles
- Tracer wire presence and any unrecorded lines found
Where Toronto Projects Need Daylighting Most

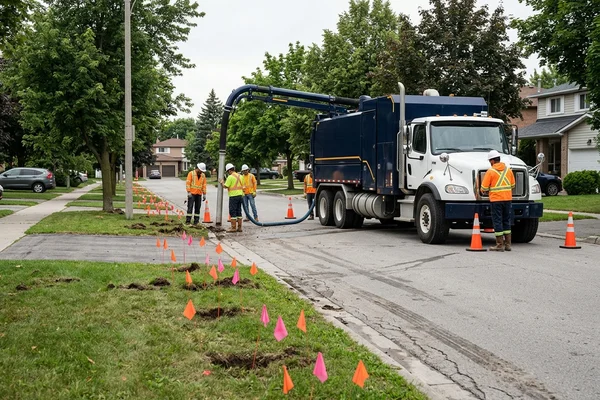

- Before HDD bores. Every crossing on the bore path, so the drill head never finds a cable by surprise.
- Inside the gas tolerance zone. Mechanical excavation is not allowed near an Enbridge main until it is exposed.

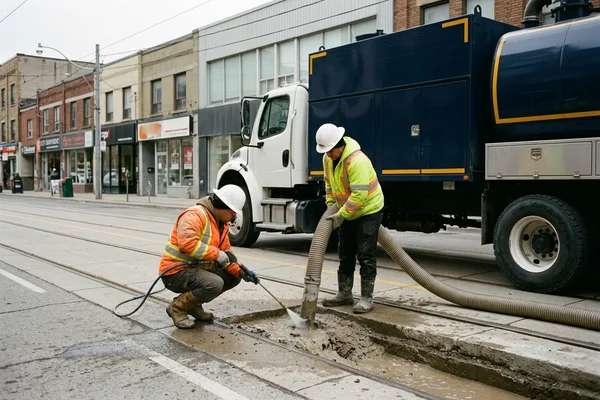

- Shoring, piles and footings near duct banks. You need both edges and the top of the bank, not a centreline.

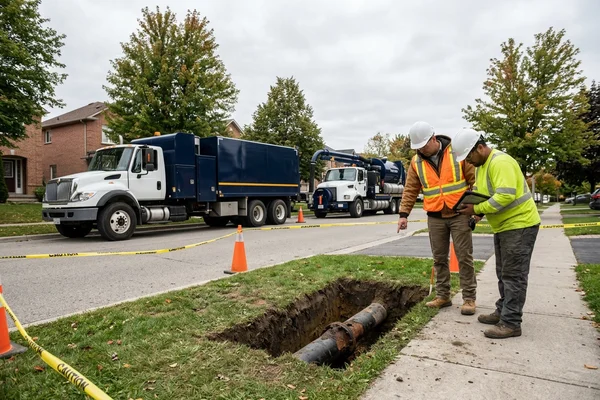

- Design verification. Engineers want real depths before drawings are stamped.
- Conflicting or faded marks. A few test holes cost less than a redesign.
Field note from our crew

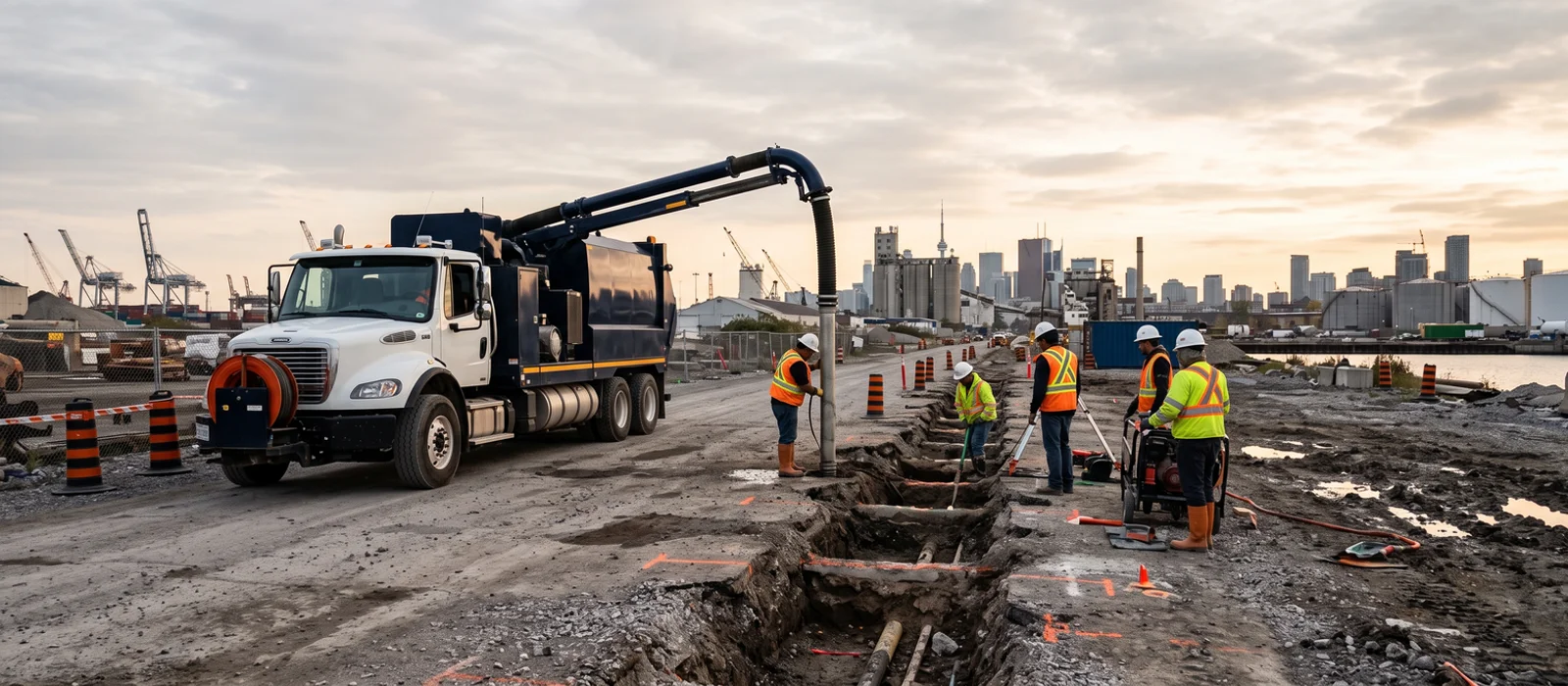

Hydrovac to a buried utility is like a dental X-ray to a tooth: you want the picture before you reach for the drill. On a Port Lands fiber corridor we found two lines nobody had marked. The client had already had one dig-in that year with another crew.
Daylighting vs Electronic Locating vs Ground Penetrating Radar
| Method | What it tells you | Depth accuracy | Finds non-metallic lines? |
|---|
| Electronic locate (paint) | Approximate horizontal position | None to rough | Only with tracer wire |
| Ground penetrating radar | Anomalies in the soil | Estimated | Sometimes |
| Daylighting (hydrovac) | The actual line, seen and measured | Exact | Yes |
Electronic locating and GPR are useful for planning where to dig. Daylighting is how you confirm it. The three work together, and our crews coordinate with your locator on site.
What Affects Daylighting Cost in Toronto?
- Depth and soil. Shallow fiber in sand is quick. Deep gas mains in clay take longer.
- Number of exposures or run length. Per-hole, per-run or hourly, whichever fits.
- Traffic control. Lakeshore, Highway 7 and downtown streets need more setup than a private lot.
- Disposal. Slurry hauled to a licensed facility on its own line.
- Documentation level. Standard logs are included. Survey-grade SUE deliverables are scoped up front.
Every quote itemises hourly rate, mobilization, disposal and locate coordination. Commercial projects across the GTA get a free on-site assessment, and the quote you recieve reflects the actual run, not a template.
